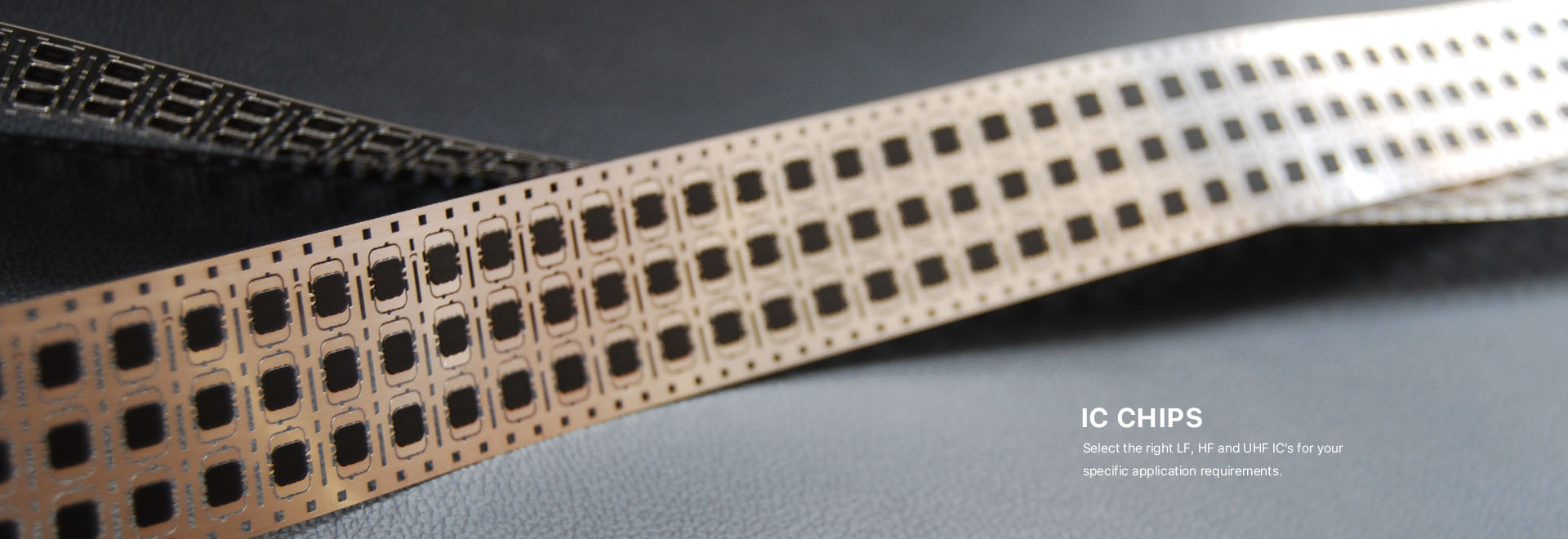

IC Chips

Select Contact and contactless smart IC's for your specific application requirements. Our Smart Cards Chips available from Alien, Atmel, Avery Dennison, Impinj, NXP, Omron, Philips, Rafsec, RSI, SmartCode, STM, Symbol, Texas Instruments, and more.
Here are Smart contact and contactless chip selection for reference:

NXP Semiconductors is a global semiconductor manufacturer that produces a wide range of integrated circuits (IC chips) for various applications. NXP's products are used in automotive, industrial, consumer, and communication markets.
* Download NXP RFID/NFC Portfolio

NXP NFC TAG IC FAMILY OVERVIEW – 13,56 MHZ (HF):

NXP NFC CHIP	EEPROM size [byte]	User memory [byte]	NFC Forum type	Baud-rate[KBit/s]	Write endurance [cycles]	Cres Capacitance [pF]
NTAG® 210µ	80	48	NFC Type 2 Tag	106	100.000	17/50
NTAG® 210/212	80	48/128	NFC Type 2 Tag	106	100.000	17
NTAG® 213/213F	180	144	NFC Type 2 Tag	106	100.000	50
NTAG® 215	540	504	NFC Type 2 Tag	106	100.000	50
NTAG® 216/216F	924	888	NFC Type 2 Tag	106	100.000	50
NTAG® I²C 1K/2K	1024/2048	888/1904	NFC Type 2 Tag	106	200.000	50
NTAG® I²C plus 1K/2K	1024/2048	888/1912	NFC Type 2 Tag	106	500.000	50
NTAG® 213 TagTamper	184	144	NFC Forum Type 2 Tag	106	100.000	50
NTAG® 424 DNA	416	416	NFC Forum Type 4 Tag	106/212/424/848	200.000	50
NTAG® 424 DNA TagTamper	416	416	NFC Forum Type 4 Tag	106/212/424/848	200.000	50
NTAG® 426Q DNA	928	928	NFC Forum Type 4 Tag	106/212/424/848	200.000	50
NTAG® 223/224 DNA	144/208	144/208	NFC Forum Type 2 Tag	106	100.000	50
NTAG® 223/224 DNA StatusDetect	144/208	144/208	NFC Forum Type 2 Tag	106	100.000	50
NTAG® 5 switch	2048	2048	NFC Forum Type 5 Tag	26/52/106	100.000	50
NTAG® 5 link	2048	2048	NFC Forum Type 5 Tag	26/52/106	100.000	50
NTAG® 5 boost	2048	2048	NFC Forum Type 5 Tag	26/52/106	100.000	50

NXP Transponder ICs in the HITAG(LF) family:

IC Chip Type	Total Memory Size (bits)	Frequency	Baud-rate[KBit/s]	Access keys	RF Interface
HITAG 1	2048	100-150 kHz	Up to 4	32 bit	HITAG 1
HITAG 2	256	100-150 kHz	Up to 4	32 bit	HITAG 2, ISO 11784/85
HITAG S 256	256	100-150 kHz	Up to 8	48 bit	HITAG 1+, ISO 11784/85
HITAG S 2048	2048	100-150 kHz	Up to 8	48 bit	HITAG 1+, ISO 11784/85
HITAG µ	128	100-150 kHz	Up to 8	32 bit	ISO 11784/85
HITAG µ Advanced	512	100-150 kHz	Up to 8	32 bit	ISO 11784/85; ISO 14223
HITAG µ Advanced+	1760	100-150 kHz	Up to 8	32 bit	ISO 11784/85; ISO 14223

NXP SMART LABEL IC FAMILY OVERVIEW – 13.56 MHZ (HF):

IC Chip Type	User memory [bit]	EPC code size [bit]	UID (TID1) size [bit]	Anticollision speed	Standard
ICODE® SLIX-L	256	-	64	Up to 60 units/s	ISO/IEC 18000-3M1 ISO/IEC 15693
ICODE® SLIX	896	-	64	Up to 60 units/s	ISO/IEC 18000-3M1 ISO/IEC 15693
ICODE® SLIX-S	1280	-	64	Up to 60 units/s	ISO/IEC 18000-3M1 ISO/IEC 15693
ICODE® SLIX 2	2528	-	64	90 units/s 2	ISO/IEC 18000-3M1 ISO/IEC 15693
ICODE® ILT	-	up to 240	96 (TID)	Up to 700 units/s	EPC Class-1 HF 1 ISO/IEC 18000-3M3
ICODE® ILT-M	512	up to 240	96 (TID)	Up to 700 units/s	EPC Class-1 HF 1 ISO/IEC 18000-3M3
ICODE® DNA	2016	-	64	Up to 90 units/s 2	ISO/IEC 18000-3M1 ISO/IEC 15693-2, 3

NXP MIFARE® CONTACTLESS TAG IC FAMILY OVERVIEW:

NXP Chip Type	UID	user memory	Operating distance	Communication speed	Protocol
MIFARE Ultralight® AES	7 byte UID, Random ID	144 byte	up to 10 cm	106 Kbps	ISO/IEC 14443-3
MIFARE Ultralight® EV1	7 byte UID	48/128 Byte	up to 10 cm	106 Kbps	ISO/IEC 14443-3
MIFARE Classic® EV1	7-byte UID, 4-byte NUID, Random ID	1K/4K byte	up to 10 cm	106 Kbps	ISO/IEC 14443-3
MIFARE Plus® SE	7-byte UID, 4-byte NUID, Random ID	1K byte	up to 10 cm	106-848 Kbps	ISO/IEC 14443-3&4
MIFARE Plus® EV2	7-byte UID, 4-byte NUID, Random ID	2K/4K byte	up to 10 cm	106-848 Kbps	ISO/IEC 14443-3&4
MIFARE® DESFire® light	7-byte UID, 4-byte NUID, Random ID	640 byte	up to 10 cm	106-848 Kbps	ISO/IEC 14443-4
MIFARE® DESFire® EV3	7-byte UID, 4-byte NUID, Random ID	2K/4K/8K byte	up to 10 cm	106-848 Kbps	ISO/IEC 14443-4

NXP UCODE®(UHF) RAIN RFID ICs:

UHF IC	TID	EPC	User Memory	Read Sensitivity
NXP UCODE 7	96 Bit	128 Bit	--	-19 dBm
NXP UCODE 7xm	96 Bit	up to 448 Bit	1 KBit	-19 dBm
NXP UCODE 7xm+	96 Bit	up to 448 Bit	2 KBit	-19 dBm
NXP UCODE 8	96 Bit	128 Bit	--	-23 dBm
NXP UCODE 8m	96 Bit	96 Bit	32 Bit	-23 dBm
NXP UCODE 9	96 Bit	96 Bit	--	-24 dBm
NXP UCODE DNA	96 Bit	224 Bit	Up to 3 KBit	-19 dBm
NXP UCODE G2iL / G2iL+	64 Bit	128 Bit	--	-18 dBm
NXP UCODE G2iM	96 Bit	256 Bit	--	-17.5 dBm
NXP UCODE G2iM+	96 Bit	448 Bit	Up to 640 Bit	-17.5 dBm
NXP UCODE G2XL	64 Bit	240 Bit	--	N/A
NXP UCODE G2XM	64 Bit	240 Bit	512 Bit	N/A

NXP JCOP Product Range:
NXP’s Java Card products are based on the Java Card platform, which is a secure and open platform for building smart card applications. Java Card technology enables applications to run on smart cards, providing a secure environment for storing and processing sensitive information. NXP’s Java Card products are designed for various use cases, including identity, payment, and other applications requiring secure data storage and processing.

JCOP Version	JCOP Type	Available EEPROM Options KByte	ROM (free for Applets, up to KBytes	APDU Buffer (RAM/Bytes)	SCP Secure Channel Protocol	Java Card Version	ISO 14443 T=CL (communication speed, kbit/s)
JCOP 2.3.1	4X	72	65	261	SCP01, SCP02	2.2.1	424
JCOP 2.3.2	1X	10/18	17	261	SCP01, SCP02	2.2.1	-
	2X	10/18/36	13	261	SCP01, SCP02	2.2.1	-
	3X	12/36/72	46	261	SCP01, SCP02	2.2.1	424
JCOP 2.4.1 R2	J2A	40/80	76	1462	SCP01, SCP02	2.2.2	-
JCOP 2.4.1 R2	J3A	40/80	76	1462	SCP01, SCP02	2.2.2	848
JCOP 2.4.1 R2	J1A	20	76	1462	SCP01, SCP02	2.2.2	-
	J2A	20/40/80/ 95/128	76	1462	SCP01, SCP02	2.2.2	-
	J3A	20/40/80/ 95/128	76	1462	SCP01, SCP02	2.2.2	848
	J4A	80	76	1462	SCP01, SCP02	2.2.2	848

Alien Technology is one of the leaders and innovators in the global UHF Gen-2 RFID industry, Alien Higgs® series chips operate at the UHF frequency range of 860-960MHz and fully support all requirements of the EPCglobal Gen2 specification. Higgs® series chips work at extremely low power levels, yet still provides sufficient backscatter signal to read tags at an extended range.

Chip type	Total memory	Max EPC bits	Unique TID	Read/Write Sensitivity	Read distance	Frequery	Standard
Higgs®-3	800 bits	96-480 bits	64 bits	Very Good	10m (30ft)	840 to 960 MHz	EPCglobal Gen2 \| ISO/IEC 18000-6C
Higgs®-4	512 bits	128 bits	64 bits	Excellent	11m (33ft)	840 to 960 MHz	EPCglobal Gen2 \| ISO/IEC 18000-6C
Higgs®-EC	512 bits	128 bits	48 bits	Best-in-class	13m (42ft)	840 to 960 MHz	EPCglobal Gen2 \| ISO/IEC 18000-6C
Higgs®-9	1024 bits	96-496 bits	48 bits	Best-in-class	13m (42ft)	840 to 960 MHz	EPCglobal Gen2 \| ISO/IEC 18000-6C

Infineon Technologies AG is a German semiconductor manufacturer and one of the world's leading providers of semiconductor solutions.

Infineon IC Chip	Interfaces	Memory	Security Features	Distance (read/write)	Data Rate	EEPROM user	EEPROM admin
SLE 66R35	ISO/IEC 14443-3 Type A	16 fixed sectors	mutual three pass authentication with 48-bit keys transport key	up to 10cm and above	106kbit/s to card 106kbit/s to reader	768 Byte	256 Byte
SLE 66R32P NB	ISO/IEC 14443 Type A	1 fixed sector NFC Forum Type 2 Tag up to 2048 Byte	individual page locking unique serial number	up to 10cm and above	106kbit/s to card 848kbit/s to reader	4072 Byte	1048 Byte
SLE 66R64P	ISO/IEC 14443 Type A	1 fixed sector NFC Forum Type 2 Tag up to 4096 Byte	individual page locking, unique serial number	up to 10cm and above	106kbit/s to card 848kbit/s to reader	8168 Byte	2072 Byte
SLE 66R01P	ISO/IEC 14443-3 Type A NFC Forum Type 2 Tag operation...	1 fixed sector	32-bit password protection for read and/or write access... block locking individual page locking password retry counter unique serial number	up to 10cm and above	106kbit/s to card 106kbit/s to reader	128 Byte	24 Byte
SLE 66R01PN	ISO/IEC 14443-3 Type A NFC Forum Type 2 Tag operation...	1 fixed sector pre-initialized NFC memory	32-bit password protection for read and/or write access... block locking individual page locking password retry counter unique serial number	up to 10cm and above	106kbit/s to card 106kbit/s to reader	128 Byte	24 Byte
SLE 66R01L	ISO/IEC 14443-3 Type A NFC Forum Type 2 Tag operatio...	1 fixed sector	block locking individual page locking unique serial number	up to 10cm and above	106kbit/s to card 106kbit/s to reader	48 Byte	16 Byte
SLE 66R01LN	ISO/IEC 14443-3 Type A NFC Forum Type 2 Tag operatio...	1 fixed sector pre-configured NFC memory	block locking, individual page locking, unique serial number	up to 10cm and above	106kbit/s to card 106kbit/s to reader	48 Byte	24 Byte
SLE 66R08S	ISO/IEC 14443 Type A	fully configurable up to 15 sectors (14 secure, 1 plain)	2-way mutual authentication with 64-bit secret key between reader and card for basic security... 64-bit keys for each sector enable hierarchical key...	up to 10cm and above	106kbit/s to card 848kbit/s to reader	984 Byte	296 Byte
SLE 66R32S	ISO/IEC 14443-3 Type A	fully configurable up to 15 sectors (14 secure, 1 plain)	2-way mutual authentication with 64-bit secret key between reader and card for basic security 64-bit keys for each sector enable hierarchical key management multi-application functionality transport key unique serial number	up to 10cm and above	106kbit/s to card up to 848kbit/s to reader	4056 kByte	1064 kByte
SLE 66R64S	ISO/IEC 14443 Type A	fully configurable up to 15 sectors (14 secure, 1 plain)	2-way mutual authentication with 64-bit secret key between reader and card for basic security. 64-bit keys for each sector enable hierarchical key management multi-application functionality transport key unique serial number	up to 10cm and above	106 kbit/s to card 848 kbit/s to reader	8152 Byte	2088 Byte
SRF 55V02P	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	1 fixed sector	individual page locking unique serial number	up to 1.5m	26.48kbit/s	232 Byte	64 Byte
SRF 55V02P HC	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	1 fixed sector	Individual page locking Unique serial number	up to 1.5m	26.48kbit/s	232 Byte	64 Byte
SRF 55V10P	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	1 fixed sector	Individual page locking Unique serial number	up to 1.5m	26.48kbit/s	1000 Byte	256 Byte
SRF 55V10P HC	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	1 fixed sector	Individual page locking Unique serial number	up to 1.5m	26.48kbit/s	1000 Byte	256 Byte
SRF 55V02S	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	fully configurable up to 15 sectors (14 secure, 1 plain)	2-way mutual authentication with 64-bit secret key between reader and card for basic security 64-bit keys for each sector enable hierarchical key management, multi-application functionality transport key unique serial number	up to 1.5m	26.48kbit/s	224 Byte	64 Byte
SRF 55V10S	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	fully configurable up to 15 sectors (14 secure, 1 plain)	hierarchical key management transport key unique serial number	up to 1.5m	26.48kbit/s	992 Byte	256 Byte
SRF 55V10S HC	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	fully configurable up to 15 sectors (14 secure, 1 plain)	2-way mutual authentication with 64-bit secret key between reader and card for basic security 64-bit keys for each sector enable hierarchical key management multi-application functionality transport key unique serial number	up to 1.5m	26.48kbit/s	992 Byte	256 Byte
SRF 55V02S HC	ISO/IEC 18000-3 mode 1 ISO/IEC 15693	fully configurable up to 15 sectors (14 secure, 1 plain)	2-way mutual authentication with 64-bit secret key between reader and card for basic security 64-bit keys for each sector enable hierarchical key management multi-application functionality transport key unique serial number	up to 1.5m	26.48kbit/s	224 Byte	64 Byte

Impinj is a company that specializes in RFID (Radio-Frequency Identification) technology solutions. The company provides RFID readers, antennas, and UHF (Ultra High Frequency) RFID ICs (Integrated Circuits) designed to enable the tracking and identification of items in various industries.

UHF IC	TID	EPC	User Memory	Read Sensitivity
Impinj Monza 4QT	96 Bit	128 Bit	512 Bit	-22 dBm
Impinj Monza 4E	96 Bit	496 Bit	128 Bit	-22 dBm
Impinj Monza 4D	96 Bit	128 Bit	32 Bit	-22 dBm
Impinj Monza 4i	96 Bit	256 Bit	480 Bit	-22 dBm
Impinj Monza 5	96 Bit	128 Bit	32 Bit	-20 dBm
Impinj Monza R6	96 Bit	96 Bit	--	-22.1 dBm
Impinj Monza R6-A	96 Bit	96 Bit	--	-22.1 dBm
Impinj Monza R6-P	96 Bit	96-128 Bit*	32-64 Bit*	-22.1 dBm
Impinj Monza X	96 Bit	128 Bit	8 KBit	-21.6 dBm
Impinj M730	96 Bit	128 Bit	--	-24 dBm
Impinj M750	96 Bit	96 Bit	32 Bit	-24 dBm
Impinj M770	96 Bit	128 Bit	32 Bit	-24 dBm
Impinj M775	96 Bit	128 Bit	32 Bit	-24 dBm
Impinj M780	96 Bit	496 Bit	128 Bit	-23.5 dBm
Impinj M781	96 Bit	128 Bit	512 Bit	-23.5 dBm
Impinj M830	96 Bit	128 Bit	--	-25.5 dBm
Impinj M850	96 Bit	96 Bit	32 Bit	-25.5 dBm

Atmel Corporation (Nasdaq: ATML) is a worldwide leader in the design and manufacture of microcontrollers, capacitive touch solutions, advanced logic, mixed-signal, nonvolatile memory and radio frequency (RF) components. Leveraging one of the industry's broadest intellectual property (IP) technology portfolios, Atmel® is able to provide the electronics industry with complete system solutions focused on industrial, consumer, security, communications, computing and automotive markets.

Atmel IC Chip	Memory	Function	ISO Standard	Operation Frequency
TK5530	126 bits	Read only	-	125 kHz
TK5551	264 bits	Read / Write	ISO11784, 11785	125 kHz
e5561	36 bytes	-	-	125 kHz
ATA5550	264 bits	Read / Write	-	125 kHz
ATA5551	264 bits	Read / Write	-	125 KHz
T/TK/5552	1024 bits	Read / Write	ISO11784, 11785	125 KHz
T5554	264 bits	Read / Write	ISO11784, 11785	100-150 KHz
T5556	256OTP+224 Bits	Read / Write	-	125 KHz
ATA5557	330 bits	Read / Write	-	100-150 KHz
ATA5558	1344 Bits (1024+320)	-	ISO11784, 11785	125 KHz
TK5561A-PP	128 bits	-	ISO11784, 11785	125 KHz
ATA5567	330 Bits	Read / Write	-	100-150 KHz
ATA5570	330 Bits	Read / Write	ISO11784, 11785	100 kHz - 150 kHz
ATA5577	363 Bits	Read / Write	ISO11784/85 Compatible	125 KHz
ATA5575M1	128 Bits	Read / Write	-	100-150 KHz
ATA5575M1	128 Bits	Read / Write	ISO11784/85 - FDX-A/B	100-150 KHz
AT88RF001	256 Bits	Read / Write	ISO14443B	13.56 MHz
AT88RF020	256 Bits	-	ISO14443B	13.56 MHz
AT88RF256	32 Bytes	Read / Write	-	125 KHz
AT88SC0104CRF CRYPTO	128 Bytes	-	ISO14443B	13.56 MHz
AT88SC0204CRF CRYPTO	256 Bytes	-	ISO14443B	13.56 MHz
AT88SC0404CRF CRYPTO	512 Bytes	-	ISO14443B	13.56 MHz
AT88SC0808CRF CRYPTO	1024 Bytes	-	ISO14443B	13.56 MHz
AT88SC1616CRF CRYPTO	2048 Bytes	-	ISO14443B	13.56 MHz
AT88SC3216CRF CRYPTO	4096 Bytes	-	ISO14443B	13.56 MHz
AT88SC6416CRF CRYPTO	8192 Bytes	-	ISO14443B	13.56 MHz

EM Microelectronic is a semiconductor manufacturer specialized in the design and production of ultra-low power, low voltage integrated circuits (IC) for battery-operated and field-powered applications across diverse consumer and automotive industries. EM Microelectronic goes beyond standard and application-specific ICs (ASIC), offering system solutions and modules for applications such as: access control; radio frequency identification; mobile phones; mass-market consumer appliances; alarm and security systems; utility and heating meters; sensor signal processing; controlling; car immobilization; electronic automotive subsystems; and much more.

EM IC Chip	Memory	Function	ISO Standard	Operating frequency
EM4005 / EM4105	128 bits	Read Only	ISO11784/85 Compatible	100 - 150 kHz
EM4033	64 bits	Read Only	ISO15693	13.56 MHz
EM4034	448 bits	Read / Write	ISO15693	13.56 MHz
EM4035	3.2K bits	Read / Write	ISO15693	13.56 MHz
EM4102	64 bits	Read Only	-	125 kHz
EM4122	64 bits	Read Only	-	860~960 MHz
EM4133	512 bits	Read / Write	ISO15693	13.56 MHz
EM4135	2432 bits	Read / Write	ISO15693	13.56 MHz
EM4200	64 bits	Read Only	ISO11784/85 Compatible	125~134.2 kHz
EM4205 / 4305	512 bits	Read / Write	ISO11784/85 Compatible	125~134.2 kHz
EM4324	1024 bits	Read Only	ISO18000	860~960 MHz
EM4450 / EM4550	1024 bits	Read / Write	-	125 kHz

Shanghai Fudan Microelectronics Group Co., Ltd. (hereinafter FMSH) is one of the leading companies specialized in the design and development of ASIC and the provision of total solutions in China.

Fudan IC Chip	Memory	Function	ISO Standard	Operating frequency
FM11RF005M	512 bits	Read / Write	ISO14443A	13.56 MHz
FM11RF005SH	512 bits	Read / Write	ISO14443A	13.56 MHz
FM11RF08 (Mifare 1K clone)	1024 bits	Read / Write	ISO14443A	13.56 MHz
FM11RF08SH	1024 bits	Read / Write	ISO14443A	13.56 MHz
FM11RF32M (Mifare 4K clone)	1024 bits	Read / Write	ISO14443A	13.56 MHz
FM11RF32SH	1024 bits	Read / Write	ISO14443A	13.56 MHz
FM1208	32K ROM+8K EEPROM	Read / Write	ISO14443A	13.56 MHz
FM1208M01 (Mifare compatible command set)	32K ROM+8K EEPROM	Read / Write	ISO14443A	13.56 MHz
FM1208SH01	32K ROM+8K EEPROM	Read / Write	ISO14443A	13.56 MHz
FM12AG08M01	32K ROM+8K EEPROM	Read / Write	ISO14443A	13.56 MHz
FM1208M04	32K ROM+8K EEPROM	Read / Write	ISO14443A	13.56 MHz

STMicroelectronics is a global independent semiconductor company and a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications.

ST IC Chip	Standard compliancy	Memory	Advanced features	Use cases
ST25DV-I2C series	ISO 15693 Up to 53 kb/s NFC Forum Type 5	EEPROM Up to 64 Kbits 40-year, 1M cycles	I²C (1.8 to 5.5V, 1 MHz) Fast Transfer Mode (256-byte buffer) 64-bit passwords Energy harvesting Field detection Configurable GPO Low-Power Mode Industrial grade	Commissioning Parameter settings Firmware upgrade Bluetooth / Wi-Fi pairing Consumer engagement Data logging LED driver programming Diagnostics Product lock/unlock Asset tracking Energy harvesting Smartphone interface
ST25DV-PWM series	ISO 15693 Up to 53 kb/s NFC Forum Type 5	EEPROM 2 Kbits 40-year, 100k cycles	Up to 2 PWM outputs (up to 15-bit resolution, 1.8V-5.5V) 32/64-bit passwords TruST25 Digital Signature	LED driver programming Parameter settings Product information Asset tracking
M24SR series	ISO 14443-A 106 kb/s NFC Forum Type 4	EEPROM Up to 64 Kbits 200-year, 1M cycles	I²C (2.4V -5.5V, 1MHz) 128-bit password RF disable Field detection	Parameter settings Bluetooth / Wi-Fi pairing Consumer engagement Data logging Asset tracking
M24LR series	ISO 15693 Up to 53 kb/s NFC Compatible	EEPROM Up to 64 Kbits 40-year, 1M cycles	I²C (1.8 to 5.5V, 400 kHz) 32-bit password Energy harvesting Field detection	Parameter settings Bluetooth/Wi-Fi pairing Consumer engagement Data logging LED driver programming Diagnostics Asset tracking Energy harvesting Smartphone interface
ST25TV	ISO 15693 Up to 53kb/s NFC type 5	EEPROM 512bit to 64Kbit 60-year, 1Mcycles	Augmented NDEF (extended) 24bit Unique Tap Code 64bit password TruST25™ Digital signature Tamper detect Untraceable & kill mode	Consumer engagement Asset tracking Brand protection Product identification Parameter setting Product information Access control
ST25TN	ISO 14443-A 106kb/s NFC type 2	EEPROM 512bit & 1.6Kbit 40-year, 100Kcycles	Augmented NDEF 24bit Unique Tap Code TruST25™ Digital signature Kill mode	Consumer engagement Product identification Parameter setting Product information Gaming Smart labelling
ST25TA	ISO 14443-A 106kb/s NFC type 4	EEPROM 512bit to 64Kbit 200-year, 1Mcycles	128bit password 20bit counter General Purpose Output TruST25™ Digital signature	Business card Smart poster Bluetooth/Wi-Fi pairing
ST25TB	ISO 14443-B 106kb/s	EEPROM 512bit to 4Kbit 40-year, 1Mcycles	32bit counters Lock bit, One-Time-Programmable bit	Product identification Public transportation Access control

Shanghai Quanray Electronics Co., Ltd. — the world's leading full-range one-stop RFID hardware solution provider. The company is committed to the research and development of innovative IoT products. Based on the concept of everything in the cloud, it transmits item information via 4G/5G network to the cloud using wireless passive sensor RFID chip tags, allowing managers to know the identity/ state/trajectory of assets anytime, anywhere.

Quanray Chip	TID	EPC	User Memory	Sensitivity(dBm)	Frequency
Qstar-7U	96 bits	144 bits	128 bits	Read:-24 Write:-21	UHF
Qstar-7X	96 bits	528 bits	128 bits	Read:-21 Write:-17	UHF
	96 bits	160 bits	512 bits	Read:-21 Write:-17	UHF
	96 bits	128-528 bits	64-512 bits	Read:-21 Write:-17	UHF
Qstar-6T	128 bits	528 bits	2K bits	Read:-19 Write:-13	UHF
Qstar-5X	256 bits	496 bits	512 bits	Read:-19 Write:-11	UHF
	256 bits	496 bits	1K bits
	256 bits	496 bits	1.5K bits
	256 bits	496 bits	2K bits
Qstar-5R	208 bits	528 bits	8K bits	Read:-17 Write:-12	UHF
	208 bits	528 bits	16K bits
	208 bits	528 bits	32K bits
	208 bits	528 bits	64K bits
Qstar-5RD	208 bits	528 bits	64K bits	Read:-17 Write:-12	UHF
Qstar-6S	128 bits	256 bits	2K bits	Read:-19 Write:-11	UHF&HF
Qstar-6S	128 bits	256 bits	2K bits	0.08A/m	UHF&HF
Qstar-6X	128 bits	256 bits	2K bits	Read:-19 Write:-12	UHF&HF
Qstar-6X	128 bits	256 bits	2K bits	0.11A/m	UHF&HF
QMars-6X	64 bits optional		256 bits	Read:0.06A/m Write:0.08A/m	HF&NFC
	64 bits optional		896 bits
	64 bits optional		2528 bits
QMars-5X	64 bits bits optional		1k bits	0.1 A/m	HF&NFC
QJupi-6U	64 bits bits		128 bits	Typical application:1.6m reading distance	LF
